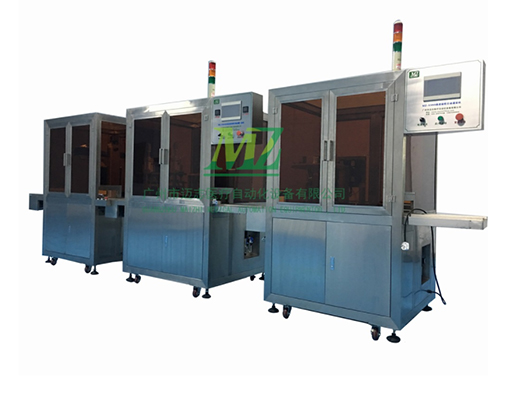

迈志血型卡8通道微柱凝胶灌装设备流水线性能参数：
|
设备产能 Equipment capacity |
4000-5000 片/小时 4000-5000 pcs/h |
|
整机功率 Overall power |
20kw 380v 50HZ |
|
适应卡片规格 Specification of applicable card |
6孔卡片 8孔卡片 6-hole card, 8-hole card |
|
加凝合格率 Qualification rate of gel addition |
≥99% |
|
送膜精度 Film feeding accuracy |
前后±0.1mm 左右±0.5mm Front-back 0.1mm left-right ±0.5mm |
|
贴标精度 Labeling accuracy |
±0.5~1mm |
|
耗气量 Gas consumption |
洁净压缩空气压力：0.6-0.8Mpa Pressure of clean compressed air: 0.6-0.8Mpa |
|
整机外形尺寸 Overall boundary dimension |
1500mm*2500mm*1850mm |
|
整机重量 Overall weight |
约500kg Approx. 500kg |
迈志血型卡微柱凝胶灌装设备流水线以创新技术重塑血型卡制造标准，九大核心工序无缝衔接，通过无气泡、无挂壁、免离心三大技术突破，提升产品品质与生产效能。
